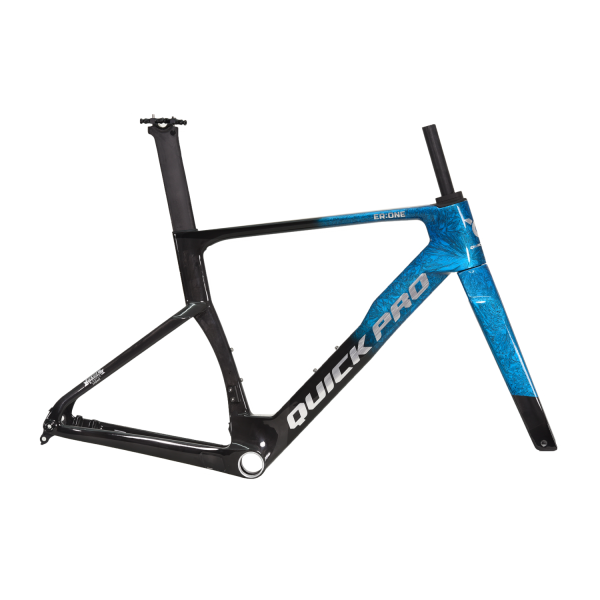

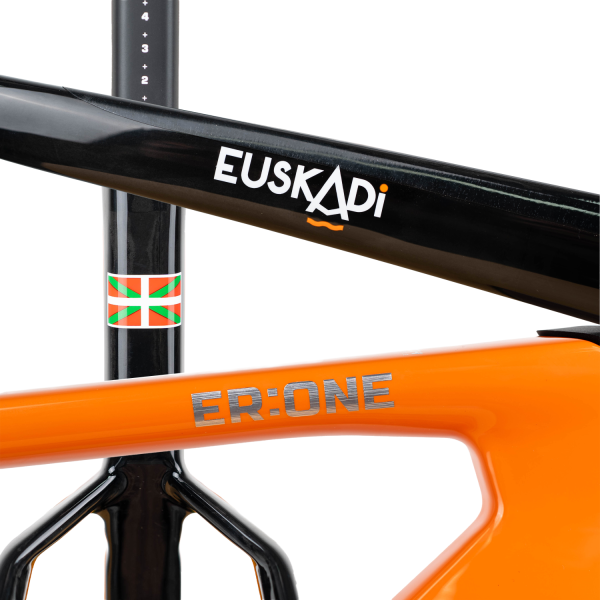

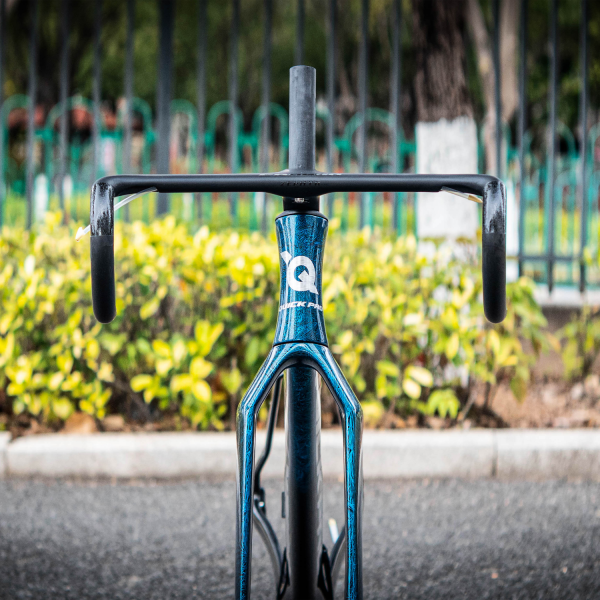

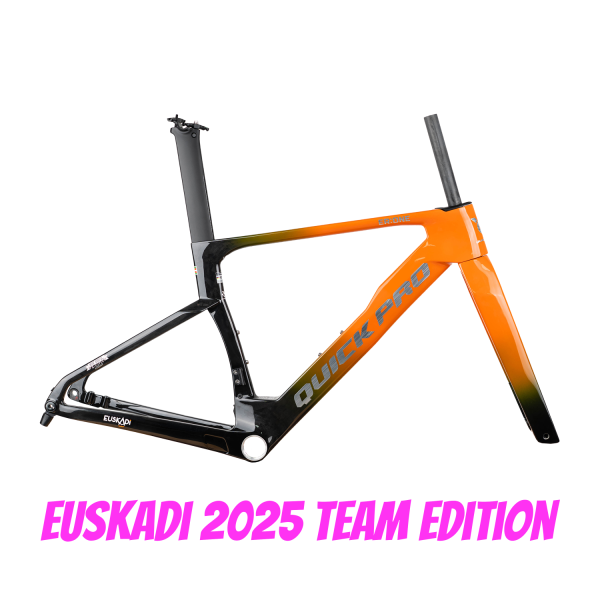

Description BORN TO WIN Raced for a SeasonWe continue to believe that racing is the ultimate testing and development ground for new products. The ER:ONE made it's debut with our team at the 2024 Tour of Hainan taking a stage win in it's very first race.The ER:ONE was developed as a sister bike to the AR:ONE. The AR giving the team a more all-round option with the ER being focused purely on aero and sprint performance. Computational Fluid Dynamic analysis (CFD) was used to design a bike that can give the team an edge.A sculpted, deep headtube allows the bike to slice through the air, while the widened fork keeps the fork blades away from the turbulent air of the front spokes improving the quality of airflow and reducing drag.The AR and ER frames helped bring the team to over 10 UCI victories in the 2024 season.Only after proving itself racing are we confident to bring the frame to retail. NOW AVAILABLE Team Euskaltel - Euskadi 2025 - Team Colors KEY FEATURES Clean and Aero Head TubeThe 52/52mm head tube on the ER:ONE features upper and lower bearing seats of 52mm to increase stiffness and allow easy integration of internal cable routing. The sculptured mid-section of the head tube works to minimize frontal area while retaining stiffness. Wider ForkThe ER:ONE front fork features a wide-spacing design that is designed to keep the fork blades out of the turbulent air generated by the front wheel. Deep aerofoils perform best with laminar airflow, so this wide stance design gives the fork the best low-drag environment. Full Safety Inspection on Every FramesetBuilding a frame so light requires precision manufacturing at every step of production. Every frame is given a full quality control inspection before leaving the factory, including X-Ray analysis of every frame produced. True Monocoque TechnologyQUICK have been producing true monocoque frames since 2014. With their in-house equipment they are able to manufacture their own monocoque moulds allowing the entire frame to be produced as a single piece with no post-mould bonding required. ER:ONE FRAME GEOMETRY Height size reference table A Size/seat tube length (mm)Equivalent SizeXS/43049cmS/46052cmM/49054cmL/52056cmXL/55058cmReach (mm)380381386393406Stack (mm)505521538556572B Horizontal top tube length (mm)515525540558575C Seat tube angle (degrees)75.074.574.073.573.5D Head tube angle (degrees)70.071.072.073.073.0E Head tube length (mm)105118132148165F Chainstay length (mm)408408408408408G Wheelbase (mm)9889859879911008H Fork rake/offset (mm)4545454545I Bottom bracket drop (mm)7070707070J Fork length (mm)373373373373373K Stand-over height (mm)746762779797813 Height size reference table Specification XS / 430 S / 460 M / 490 L / 520 XL / 550 XXL / 584 Frame Size / Seat Tube Length (mm) 430 460 490 520 550 584 Effective Top Tube Length (mm) 515 525 540 558 575 596 Seat Tube Angle (°) 75.0 74.5 74.0 73.5 73.5 73.0 Head Tube Angle (°) 70.0 71.0 72.0 73.0 73.0 73.5 Head Tube Length (mm) 105 118 132 148 165 185 Chainstay Length (mm) 408 408 408 408 408 408 Wheelbase (mm) 985 985 987 991 1008 1019 Fork Offset / Rake (mm) 45 45 45 45 45 45 Bottom Bracket Drop (mm) 70 70 70 70 70 70 Fork Length (mm) 373 373 373 373 373 373 Standover Height (mm) 746 762 779 797 813 846 Stack-to-Reach Ratio (STR) 1.32 1.36 1.39 1.40 1.40 1.42 Reach (mm) 380 381 386 393 406 415 Stack (mm) 505 521 538 556 572 593 SPECIFICATIONS Frame sizes: XS, S, M, L, XLFrame material: Carbon FIber (Including T1100 & M65 High Modulus)Headset: 52mm/ 52mm upper lower Fully InternalBottom Bracket: T47 Threaded (68mm)Dropouts: F- 100*12mm R- 142*12mmBrake System: Flat mount disc brakeMax tire clearance: 700*32CAccessories: Seat Post, Headset, Seat Post Clamp, Derailleur Hanger, Di2 Battery Stopper, Seat Post Dust Cover, Thru-Axles.Rider Weight Limit: 120kgManufacturer's Frame Warranty: Five Years Comparison with the AR:ONEAR:ONE: An all-around frame that balances lightweight design with aerodynamic efficiency, suitable for various riding scenarios.ER:ONE: An aerodynamic-focused frame designed for speed on flat terrains, ideal for riders seeking high-speed performance.Choosing between the AR:ONE and ER:ONE depends on your specific riding goals and preferences... and of course; whichever you think just looks better. Real World Weight DataWe'll update this section as we get more data. So far most frames have had real-world weights between 880-985g depending on size and colour. "Real world weights" means including paint and both mech hangers. INTEGRATED BAR QUICK Integrated HandlebarWe understand a bike's cockpit is a very personal choice. Therefore we don't tie you in to a certain cockpit so you're free to chose from any of our excellent handlebars. However, when you purchase the ER:One, you can add the QUICK Integrated Handlebar for just $200 more.Quick's accessory brand is called CANWIN. Their cockpit comes in two versions. The Zephyr SL (super light) and Zephyr SSL (super super light). Made with True Monocoque Technology, it’s super stiff, and impressively lightweight at only 288g, and comes in a variety of modern sizes to cater to your fit. GALLERY Team Edition"Cracked-ice" blue paint fading out to raw carbon and the whole frame covered in a glossy clearcoat. Carbon BlackWith carbon this good, why hide it? Raw exposed carbon with silver holographic logos, all finished with a glossy clearcoat. Marble WhiteMarble White - A marbled finish upper with an off-white lower and a very subtle transparent logo on the down-tube. Not the lightest paint job, but maybe the classiest. UTC-ButcherBox CyclingUnited Through Cycling - ButcherBox Cycling are a Boston-based team racing all around North America. The frame features semi-transparent blue paint with bold white graphics. Starlight WhiteStarlight White - A moonlit-white frame with elegant simplicity; every logo—even the “Anyone Can Race” text inside the fork—shimmers in shifting iridescent hues from any angle. Mist Green Phantom Violet Pink
