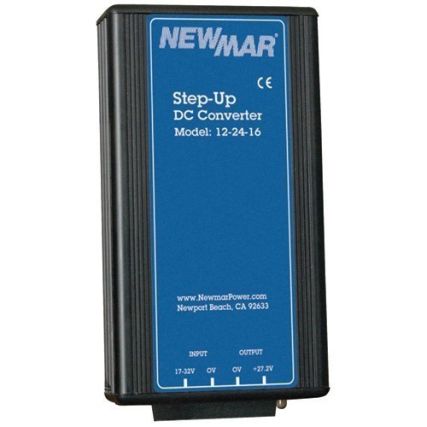

Newmar 12-24-16 Step Up Dc-Dc Converter 16 Amp Continuous

Newmar 12-24-16 Step Up Dc-Dc Converter 16 Amp Conitnuos These “UP” converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application: In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps. Standard, Non-Isolated Series Intended for use on negative ground systems 10 -15 VDC input range Available in 7, 16 and 25 amp outputs Current limited, voltage spike suppression, automatic thermal shutdown and recovery Model Input voltage Output voltage Output Amps Intermittent Output Amps Continuous Case Size Weight Lbs Kg Standard – Non-Isolated 12-24-7 10-15 27.2 7 7 C-1 1.4 .64 12-24-16 10-15 27.2 16 16 C-2 3.55 1.61 12-24-25 10-15 27.2 25 25 C-3 4.1 1.86   Case Size Case Inches Centimeters H W D H W D C-1 3.5 3.5 1.75 8.9 8.9 4.5 C-2 4.25 5.9 14.0 10.8 15.0 35.6 C-3 6.0 6.8 16.5 15.2 17.3 41.9 Specifications Input: 10 – 15V DC Output: 27.2 VDC /-5% at extreme temperature load, input, tolerance, etc. Ripple: <100mV P-P Regulation: /- 5% Line/Load Duty Cycle: Intermittent: 2 minutes, 20% duty Continuous: 24 hours, 100% duty Operating Temp: -25˚ – 30˚ C, derate linearly from 30 to 0% @ 80˚ C Mechanical Efficiency: 93% – Typical. Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533 Front panel terminal block Output indicator: Green LED Manufacturer Part Number: 12-24-16
